Parameter
Brand
:
LMENGER
Aspect Ratio
:
5:4
Panel Type
:
Black Frame(With glass)
Resolution
:
32768×32768
Touch Technology
:
Infrared 10 Points Touch
Support Systems
:
Windows,Android,Linux,Mac
Other Features
:
Easy installation; IP65 Waterproof and dustproof
Contact Us
Product Details
10-point multi-touch infrared screen

Product Overview

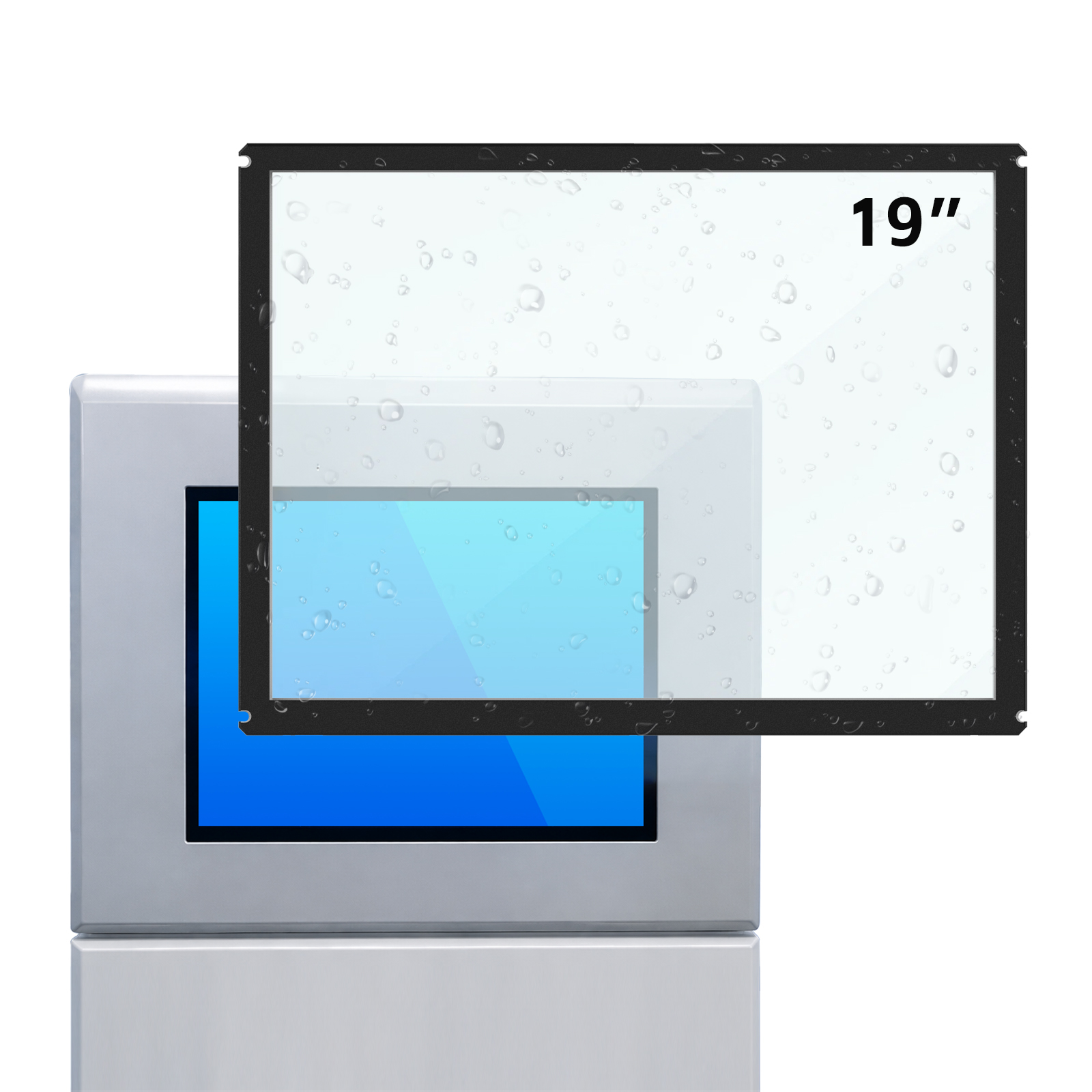

LMENGER's infrared touch screen utilizes infrared sensing technology, supports 10-point touch, and features high precision and fast response, effectively avoiding issues such as touch latency and dropped touches. It connects via a USB interface and is compatible with major operating systems including Windows, Android, and Linux, requiring no complex driver installation for use. With waterproof and dustproof capabilities, it operates stably under strong light and across a wide temperature range, making it widely suitable for commercial and industrial applications such as digital signage, self-service kiosks, industrial monitoring, and outdoor navigation.



Product Advantages

In terms of product structure, the 3mm tempered glass covering the surface provides excellent impact resistance and scratch protection. Combined with an IP65-rated dustproof and waterproof design, it effectively prevents the ingress of dust and moisture, significantly extending the device's service life in outdoor and semi-outdoor environments.

sunlight readable touch screen


anti-glare infrared touch screenProduct Features

The LMENGER infrared touch screen features a black aluminum alloy bezel, which is not only sturdy and durable but also slim and aesthetically pleasing. In terms of connectivity, it comes with a 1.5M cable and connects via a USB 2.0 interface—no additional power cord is required. It offers plug-and-play functionality with no driver installation needed.



Application Field

self-service terminal touch screen

Mounting Steps

1.Prepare installation environment and tools.→2.Clean the display surface and mounting area.→3.Align and install the infrared touch frame around the display.→4.Secure the frame with brackets or screws.→5.Connect the USB touch interface to the host device.→6.Install drivers and calibrate the touch system.→7.Test touch accuracy and multi-touch performance.→8.Complete final inspection and operation verification


Outdoor infrared touch screen installation


Specifications


Product Name

Infrared Touch Screen(TR Series)

Size19 Inch
Aspect Ratio5:4Touch Point10 points
Dimensions413*338mmView Area

378*303mm

Light Transmission

>92%

Operating VoltageDC 5V ±5%
Operating Temperature-10°C to 50°CStorage Temperature-20°C to 60°C
Touch LifespanUnlimited touchesConnectionUSB 2.0+UATR, plug-and-play
Transmission Speed480 MbpsResponse Time

<10 ms

Touch Pressure

Zero pressure

MaterialAluminum alloy frame+Tempered glass
Supported Resolution

32768 x 32768

Touch Medium

Finger, gloved hand, stylus, and other opaque objects

Drawing Distance20mmTouch PrecisionCenter area≤1 mm,edge ≤3mm
Operating Current

<200mA

Light ResistanceAnti-light at all angles;80000Lux
Supported SystemsWindows, Android, LinuxHumidity90% relative humidity, non-condensing
